maxGUARD from Weidmuller

Reading Time: < 1 minute

Load monitoring and potential distribution combined – taking control voltage distribution to a new level

Fail-safe and maintenance-friendly control voltage distribution that can be installed quickly and saves space are a must for efficient machine and facility operation.

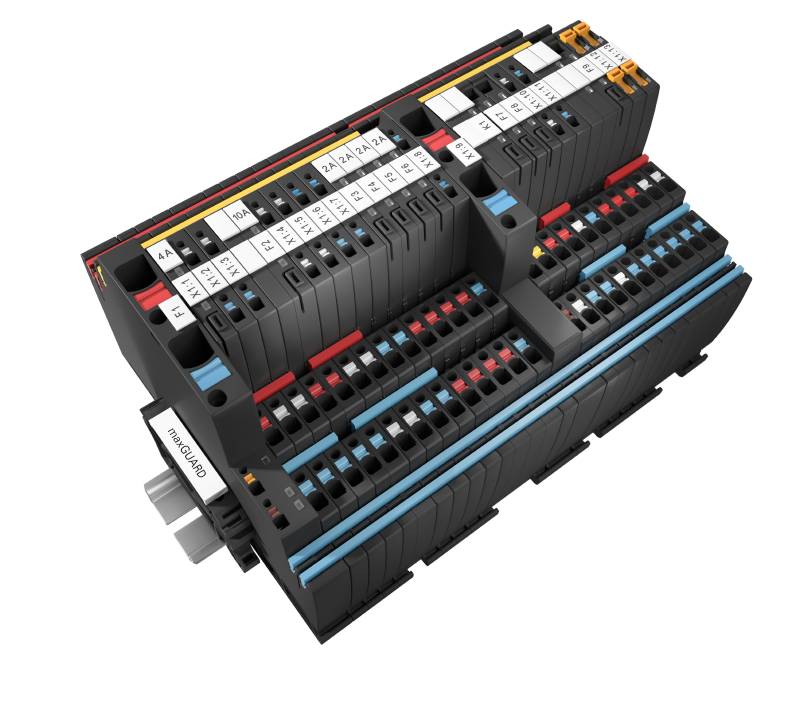

With the new maxGUARD system from Weidmuller, the terminal blocks (previously installed separately) for distributing potential to the outputs of the electronic load monitors become an integral part of a 24 V DC control voltage distribution solution.

The innovative combination of load monitoring and potential distribution saves time during installation, increases safety against failure and reduces the amount of space required on the terminal rail by 50 %.

Product Advantages

Easy Servicing

Sophisticated operating, testing and connection elements permit safe access to all voltage potentials and load circuits during commissioning and maintenance.

Practical disconnecting lever

Potential distributor with a disconnecting lever for simple galvanic isolation of the load circuit for testing and checking purposes.

Innovative cross-connections

Less time and effort needed for wiring due to cross-connections between load monitoring and potential distribution terminals.

Space-saving

Electronic load monitors and potential distributors with a 6.1 mm pitch.

Easily customised

The sheer range of variants and the very different potential distribution terminals and additional components enable customised solutions at all times.
